All-in-one Multi-cam Switcher, Encoder, Recorder, Studio Monitor with 4G/5G, Ethernet and Wi-Fi

The Winkomm Go all-in-one multi-cam switcher encoder recorder monito facilitates users to connect and live switch up to 10 video sources, and then connect to LAN via Wi-Fi, Ethernet, or LTE (LTE connection requires SIM card and data plan not included). The large 8" touchscreen display shows the streaming image, the input streams as well as the control interface, which allows you to switch between the info sources with a touch. Winkomm Go also features an HDMI output to display your stream locally on an optional HDMI display. It also has a line-level audio input, a mic-level audio input, and a discrete headphone audio out.

The Winkomm Go supports input resolutions ranging up to 4K using the H.265 codec, and you can stream resolutions from 480p to 4K to YouTube, Twitch, and other streaming services via custom RTMP presets. You can record your stream directly in .mp4 format to an optional SD card with up to 128 GB capacity using the built-in SD card slot.

The built-in 10000mAh battery enables you to stream on the go for up to 3 hours. The Winkomm Go is versatile and can be used for various applications such as church services, concerts, news reports, and sports competitions.

winkomm go 1
winkomm go 2
winkomm go 3
winkomm go 7
winkomm go 6
winkomm go 4
winkomm go 5

Why You Need Winkomm Go

Qualcomm 660 Processor

Winkomm Go's Qualcomm Snapdragon 660 processor provides a significant leap in performance, allowing for a smooth and seamless user experience.

5G, Ethernet & Wi-Fi

Winkomm Go features with 1x4G LTE, 1x5G, Wi-Fi and Ethernet providing stable network connection, no more missing your shots even on the go.

8" LCD Display, 410 cd/m²

The 8" touchscreen display provides a user-friendly interface that displays streaming images, input streams, and control interfaces.

Multiple Sources Switching

The Winkomm Go offers multiple options for connecting your media sources, including HDMI and USB inputs, SD card input, IP stream, pre-recorded video, and Airplay.

4K60 Video Support

Winkomm Go supports input resolutions up to 3840x2160 at 60fps, and streams at your choice of 480p, 540p, 720p, 1080p and 4K.

Customized PinP

Winkomm Go features with Customized PiP options, including Interview mode, movie mode, allow you to bring a unique look and feel to your stream

Overlay

Enhance your live streams by adding brand logo, GIFs, rolling captions, time, scoreboard, votes and title overlay.

Chroma Key

For news or on-set presentation work, Winkomm Go is perfect as it features the powerful Chroma Key for green screen.

Vertical Video

Winkomm Go supports both horizontal video and vertical video for different live streaming scenarios.

External Microphone

Winkomm Go has a 3.5mm line-level audio input, a 3.5mm mic-level audio input and a 3.5mm discrete headphone audio out.

HDMI out

With Winkomm Go, you can use its HDMI out feature to showcase your stream on an HDMI device or display a multiview image.

Battery & Charging

Winkomm Go integrates 10000mAh battery and USB-C charging so you don't worry about running out of power.

Specification

  • Aspect Ratio 16:9 & 9:16
  • Video Source 2xHDMI, 1xUSB, 1xIP Stream / MP4 video / Image / PDF / PowerPoint / Microsoft Word / Airplay
  • Video Output 1xHDMI
  • HDMI Input 1 3840*2160, 1920*1080, 1600*900, 1440*900, 1440*1050, 1366*768, 1360*768, 1280*1024, 1280*960, 1280*800, 1280*720, 1280*600, 1024*768, 800*600
  • HDMI Input 2 1920*1080, 1600*900, 1440*900, 1440*1050, 1366*768, 1360*768, 1280*1024, 1280*960, 1280*800, 1280*720, 1280*600, 1024*768, 800*600
  • HDMI Out 480p, 576p, 720p, 1080p, 4K
  • Display Resolution 1920x1080
  • Graphic Format MJPEG
  • Input Video Format MP4
  • Audio Source 1x3.5mm mic in, 1x3.5mm line in
  • Audio Output 1x3.5mm
  • Audio Level -40db ~0db
  • Audio Bitrate 64,96,128,160,192,256kbps
  • Audio Sampling 44.1kHz, 48kHz
  • Audio Format AAC
  • Pull-Stream RTMP ,RTSP, HTTP-FLV, HLS, WEBRTC, SRT
  • Audio Compression AAC
  • Stream Protocol RTMP(s), SRT
  • Stream Bitrate 6000kbps max
  • Video Encoding CBR, VBR
  • Encoding Format H.264, H.265
  • Multistream 3
  • Recording Resolution same with Program
  • Recording Format MP4
  • Internal Storage 3GB ROM + 32GB RAM
  • SD Card 128GB
  • Processor Qualcomm 660
  • OS Android 9.0
  • Network 1x4G LTE, 1x5G, Ethernet, Wi-Fi
  • SIM Cards Micro SIM
  • Supported Bands LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28
    LTE-TDD: B38, B39, B40, B41
  • Display 8 inch
  • Battery 10000mAh
  • Power 3.6-8V/3A, 12V 2A
  • Product Size 21.3x12.3x2.2cm
  • Package Size 24x16.4x7.4cm
  • Product Weight 0.66kgs/0.8kgs

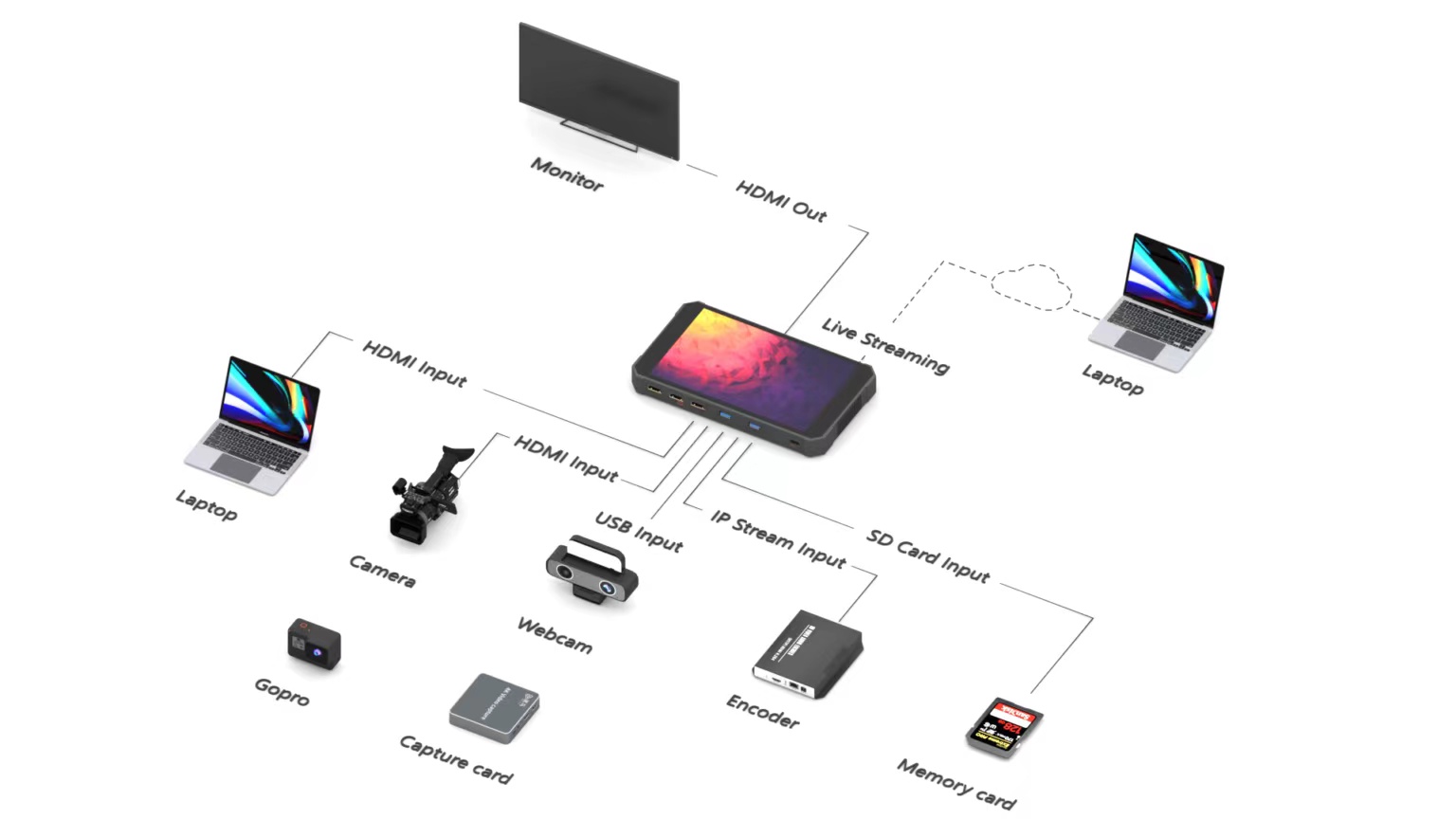

winkomm go connection diagram
